Configuring input sources

At a glance

• Three input sources: File (the default), Email, or HTTP.
• HTTP needs a connection method — the fields it asks for depend on which one you pick.
• For a "GET" connection, MorphMapper computes an authentication token from your username and password automatically — you won't see a separate field for it.

When creating or editing a template, you choose where its source document will actually come from. This is a different setting from the file you upload while testing — it's about how this template's file arrives in production once deployed.

The three input sources

Source	Description
File	Default. A document is provided directly, the way you uploaded one during setup.
Email	The document arrives as an email attachment.
HTTP	MorphMapper (or the system running it) connects out to fetch the document itself. Choosing this reveals a connection method to configure.

HTTP connection methods

Pick one of three connection methods, each asking for different credentials:

Method	Fields required
POST	Username and password.
GET	Username and password, plus a token MorphMapper computes from them automatically. There's no separate field for the token; it's derived from what you enter.
Token-based	Username, password, and an endpoint address to connect to.

Only the fields relevant to the selected method are shown; the form adjusts as you change your selection.

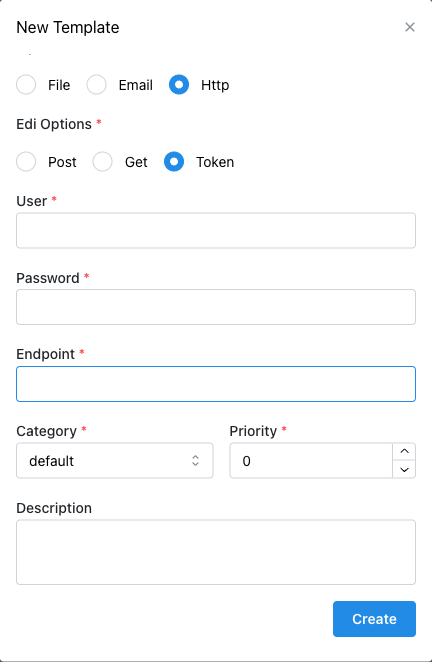

Token-based is the one method with an extra field — its User and Password sit alongside a third, Endpoint, for the address MorphMapper connects to.

Field types and schema variables

Each credential field is masked or plain depending on the connection method — not consistently across all three:

Method	Fields	Password field's input type
POST	User, Password	Masked (password input)
GET	User, Password (+ derived token)	Masked (password input)
Token-based	User, Password, Endpoint	Plain text (not masked)

Whatever you enter is passed into the template at runtime as a schema variable, which is what you'd reference from a Document Variable or Anchor Variable node if the template's logic needed to read back the connection's own credentials: User becomes $ediUser, Password becomes $ediPassword, and Token-based's Endpoint becomes $ediEndpoint.

For GET, the derived token that MorphMapper computes from User and Password (mentioned above) is exposed as $ediOAuth. The value itself is base64(user:password) — HTTP Basic auth's standard encoding — computed from whatever you typed into User and Password at the moment you saved the template, not recomputed at request time.
